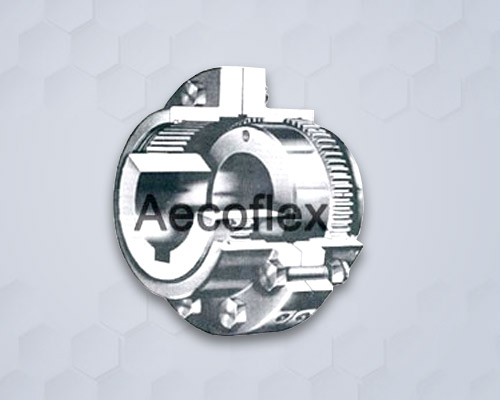

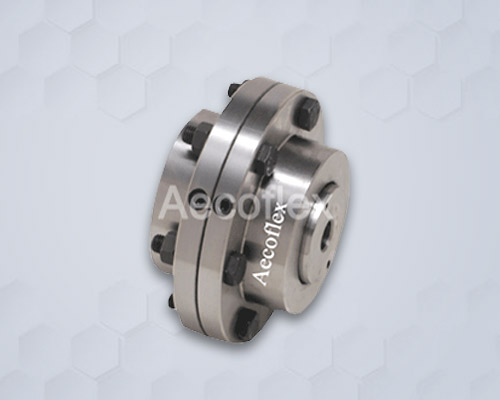

Gear Coupling

Series	Size HFG	Max Bore mm	Pilot Bore mm	Load Capacity		Max RPM	Wt. with Solid Hubs Kgs.	GD2 Kg.M.	Dimensions in mm
Series	Size HFG	Max Bore mm	Pilot Bore mm	Torque Kg. M.	HP Per 100RPM	Max RPM	Wt. with Solid Hubs Kgs.	GD2 Kg.M.	A	B	C	D	E	F	G	H	S1
AEP 10	0	35	10	50	7	8000	42	0.03	50	1.5	120	15	45	39.5	93	75	45
AEP 10	01	50	20	100	14	6300	10	0.14	65	2.5	170	17	55	49	115	110	65
AEP 10	02	60	30	250	35	5000	15	0.20	85	2.5	185	17	70	62	145	125	80
AEP 10	03	75	40	450	63	4000	26	0.48	105	2.5	220	20	85	78	175	150	105
AEP 10	04	90	50	850	119	3350	40	0.95	130	2.5	250	20	105	96	215	175	125
AEP 10	05	110	60	1300	182	2800	62	1.90	155	5.0	290	25	110	106	230	200	140
AEP10	06	125	75	2000	280	2500	85	3.00	175	5.0	320	25	125	117	260	230	155
AEP 10	07	140	90	3500	490	2100	120	5.25	205	5.0	350	25	140	134	290	260	175
AEP 10	08	160	105	4500	630	1900	180	8.50	230	5.0	380	25	155	147	320	290	190
AEP 10	09	180	125	5600	784	1700	210	15.00	250	5.0	430	25	165	156	340	330	205
AEP 10	10	220	140	8200	1148	1400	290	30.50	310	5.0	490	25	180	171	370	390	220
AEP 20	11	260	160	11000	1536	1250	550	58	350	5	545	30	200	192	410	445	240
AEP 20	12	300	180	14700	2053	1120	710	88	400	5	590	30	240	231	490	490	280
AEP 20	13	330	200	20000	2793	1000	980	138	440	7.5	680	35	260	242	535	555	310
AEP 20	14	370	220	28600	3994	900	1320	291	500	7.5	730	35	280	266	575	610	330
AEP 20	15	410	250	34750	4852	800	1700	353	540	7.5	780	35	320	305	655	666	370
AEP 20	16	455	300	60000	8378	710	2550	680	625	10	900	45	350	335	720	755	425
AEP 20	17	520	375	85350	11917	630	3620	1235	720	10	1000	45	400	386	820	855	460
AEP 18	18	610	450	113000	15778	560	4860	1965	810	10	1100	55	450	430	920	950	510
AEP 20	19	710	520	149000	20805	500	6380	3012	910	15	1250	55	485	446	100	1050	56
